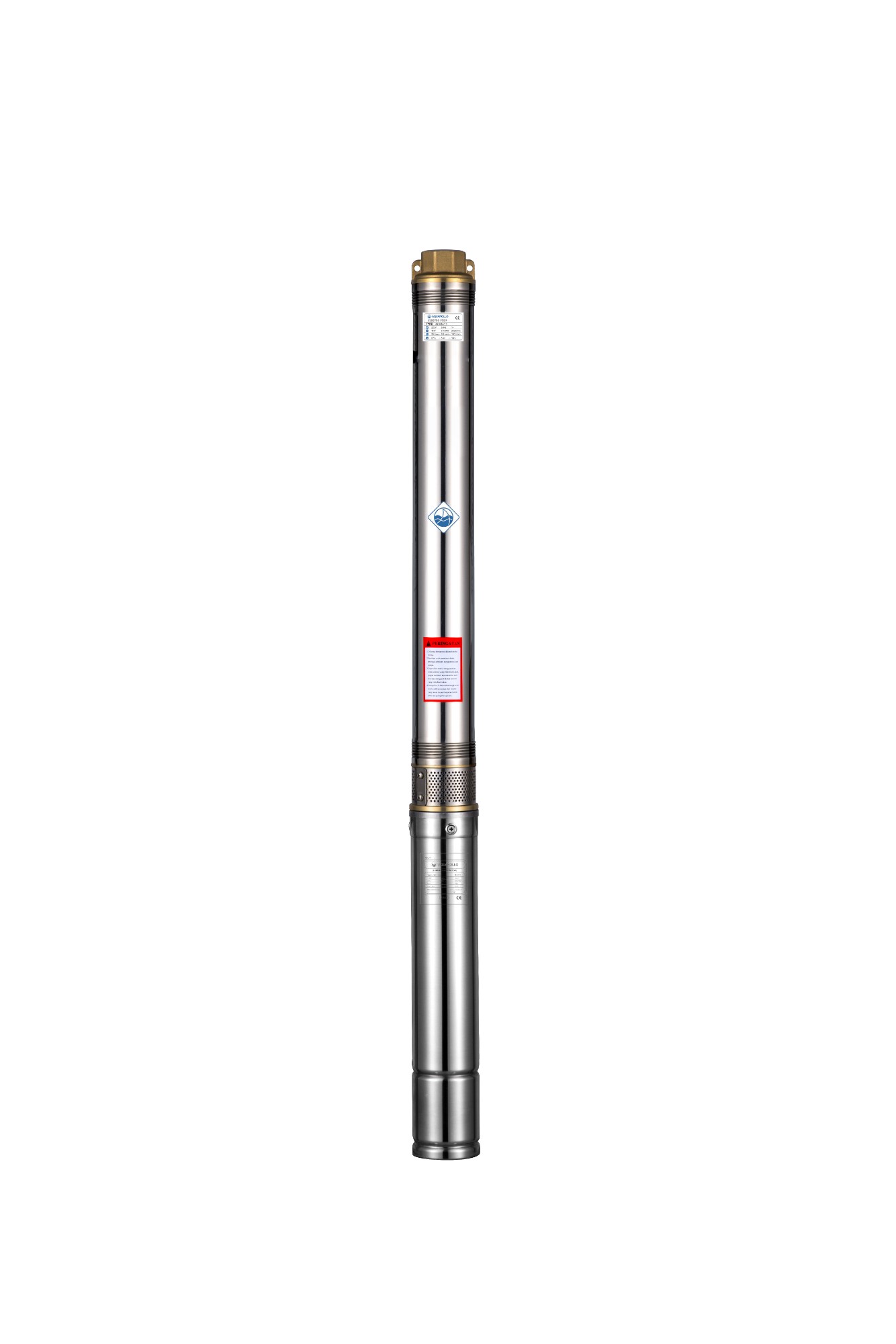

4''DEEP WELL PUMP

APPLICATIONS

• For water supply from wells or reservoirs.

• For domestic use, for civil and industrial applications.

• For garden use and irrigation.

OPERATING CONDITIONS

• Maximum fluid temperature up to +35°C

• Maximum sand content: 0.25%

• pH permissible range: 6.5 - 8.5

• Minimum well diameter: 4”

MOTOR AND PUMP

REWINDABLE MOTOR, FILLED WITH EDIBLE OIL.

Single-phase: 220V - 240V/50Hz

Equip with start control box or digital auto-control box which built in capacitor & current mode thermal protector.

Pumps are designed by casing stressed, pump sleeve with screw thread, single stage floating impellers.

Curve tolerance according to ISO 9906

OPTIONS ON REQUEST

• Special mechanical seal

• Other voltages or frequency 60 Hz

• Single phase motor with built-in capacitor

• Inlet & Outlet are available with Casting or SS304

• Oil Chamber is available with Brass or SS304
